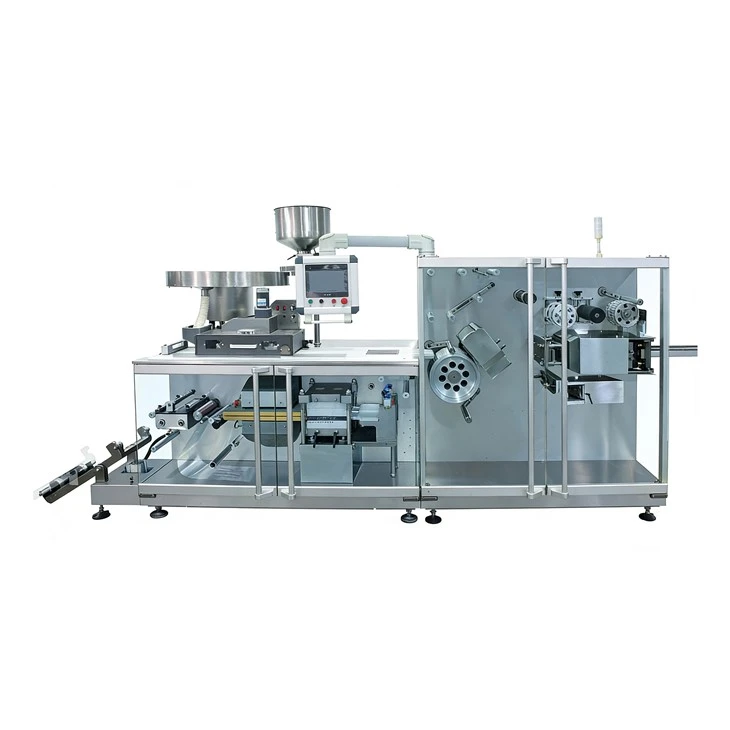

DPH-260 Roller Alu-Plastic Blister Packaging Machine

DPH260 high-speed aluminum-plastic blister packaging machine is a new generation product that our company combined with the current foreign similar products and our company's mechanical processing technology by learning from each other. DPH260 adopts multi-servo traction, precise control, low noise, fast production speed, stable performance of each module, and convenient in mold replacement. In order to achieve automated and efficient production of pharmaceutical packaging, the labor cost and material cost are reduced to a minimum, effectively improving the production efficiency of the enterprise, and ensuring that the packaging production process of the drug is in full compliance with the requirements of the Good Manufacturing Practices - GMP.

DPH260 aluminum-plastic blister packaging machine has a wide range of use and is mainly used for packaging medicines (such as tablets, capsules, gelatin capsule and various shaped tablets), food and other similar products. The packaged article is reliably sealed in a medicinal non-toxic polyvinyl chloride foil film (PVC) blister and aluminum foil.DPH260 aluminum-plastic blister packaging machine has a wide range of use, which can achieve perfect matching with machines such as box machine to meet the packaging requirements of various wiring types for various plate types.

GMP compatible design:

The whole machine is wrapped in stainless steel, and the transmission parts are separated from the working area inside the machine body. The work area is protected by a cover to prevent accidental injury to people. The cover is made of transparent material for easy viewing. The stainless steel wrap at the bottom of the work area makes it easy to clean up dust accumulated quickly.

Compact in size:

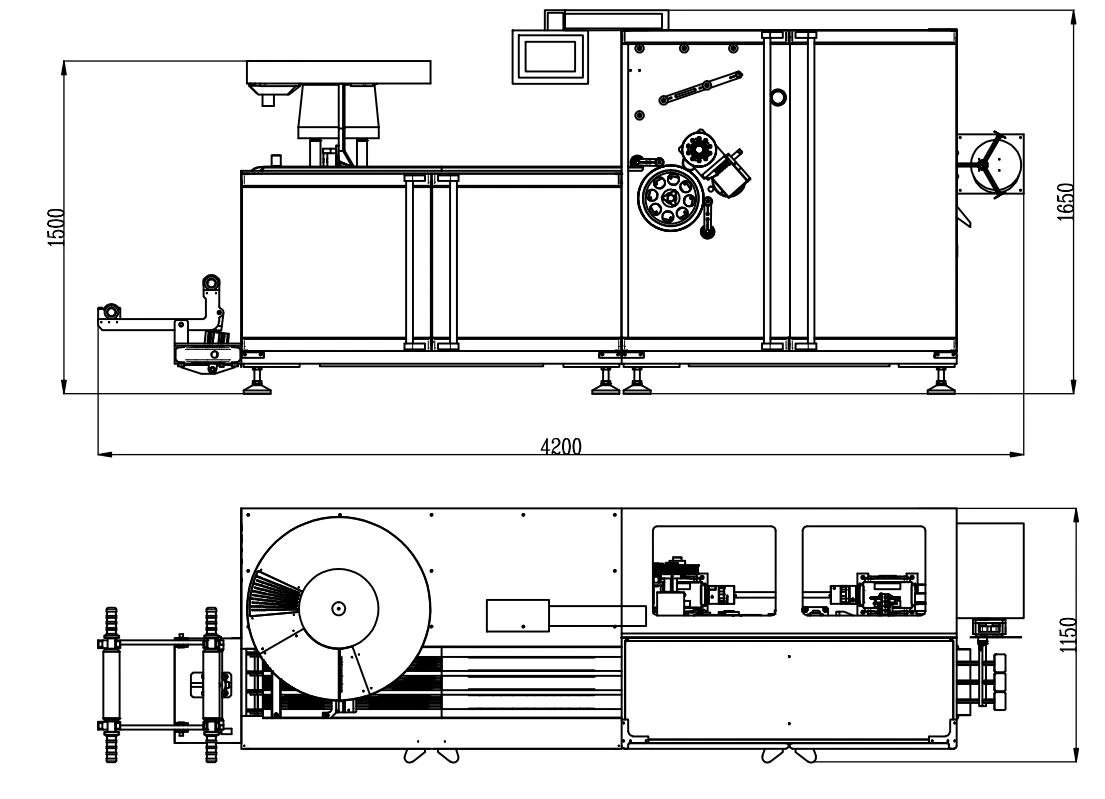

DPH-260 only needs 5 square meters, which is very convenient for the layout of clean room (inside workshop). The whole machine is half-detachable and convenient for transportation and final assembly.

Simple molding replacement design:

The molding part is designed by a servo drive directly connecting the eccentric rod and the molded body cavity, and the design speed is 30-60 times/min. It only needs to fix a few screws to replace the mold, and the replacement is convenient and adaptable. It can be put into use without repeated adjustments or fine adjustments. It has Low requirements for personnel, which can save time and improve production efficiency.

Flexibility of Material:

Most blister packaging materials can be used in DPH-260, including PVC, PVC/PVDC, PVC/ACLAR and COC cold-formed aluminum, all of which are widely used in production.

Area isolation:

The feeding zone and the testing site are independent from the heat seal, batch number, punching and cutting zone, and the intervention zone is completely isolated from the non-intervention zone.

Continuous seal:

The rotary sealing mechanism continuously runs the seal, which is fast, stable, impact-free and has a good sealing effect. It has outstanding advantages compared to intermittent systems.

Batch number and punching:

The batch number is placed on the same horizontal line as the two parts punched in one unit, which minimizes vibration (balances the force from the inside). The mold occupies less space so that the machine can run at or near 180 cycles per minute.

Output coordination:

The 260 mm format can be combined with a 1 out 3 combination for easy connection to 1 or 2 conveyor belts, which perfectly cooperates with the downstream line under the premise of no surplus material.

DPH-260 optional configuration:

Different material feeding systems

. Blister pinhole detection system (for cold aluminum molding materials)

Vision system detection blister material system

.Print registration material control system

Inline printer flexo or laser printer

Coded inkjet, laser printer, etc.

Bar code reading and printing aluminum foil system

Printer connected to PC control system integration

. Modem connection to PC control system integration

Remote operation management

.Inline downstream automation facilities
