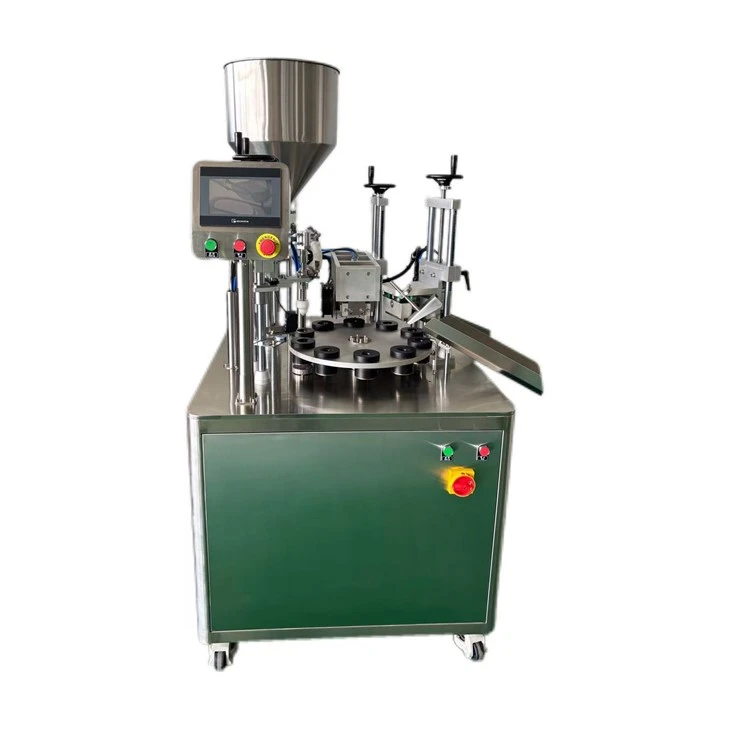

Products Description
Ultrasonic Sealing Technology: Ensures stable and durable sealing with clear, distortion-free patterns.
Operation Workflow: Manual tube placement, automatic alignment, filling, sealing, coding, edge cutting, and finished product output. User-friendly and efficient.
Digital Automatic Frequency Tracking System: No manual frequency adjustment required.
Features automatic power compensation to maintain performance over time. Adjusts power based on tube material and dimensions for stable operation, low failure rate, and extended lifespan.
PLC Touch Screen Control: Integrated fault alarm system displays error messages on the screen for quick troubleshooting.
304 Stainless Steel Construction: Corrosion-resistant and suitable for acidic/alkaline environments.
Automatic Recognition System: Prevents filling and sealing without tubes, reducing machine and mold wear.
Dual-Purpose Filling (Cream/Liquid): Filling accuracy within ±1%.
Applications: Cosmetics, Pharmaceuticals, Food, Industrial
Technical Parameters
| Power Supply | 220V, 50Hz |
| Air Pressure | 0.6Mpa |
| Sealing Efficiency | 20-25 tubes/min |
| Sealing Height | 70-220mm (customizable width) |
| Frequency | 20KHz |
| Power | 2.6kW |
| Filling Accuracy | ±1% |
| Filling Range | 5-250ml (adjustable according to filling volume) |
| Machine Dimensions | 1100*900*1800mm |
| Machine Weight | 380kg |
Configuration List
| No. | Product Name | Brand/Model |
| 1 | Ultrasonic system | Digital auto-frequency tracking |
| 2 | Alignment photoelectric | Panasonic |
| 3 | PLC | Hechuan |
| 4 | Encoder | Sick |
| 5 | Touch screen | Weintek |
| 6 | Sensor switch | Sick |
| 7 | Cylinder | AirTAC |
| 8 | Solenoid valve | AirTAC |
| 9 | Motor | Shanghai Ruinai |
| 10 | Divider | Xinjia High Precision |
| 11 | Stepper motor | Leadshine |
