Scope Of Application:
Pharmaceutical industry, food industry, cosmetics industry and auto parts industry automatic packaging and sealing of cartons.
Main Features:
- This equipment is specially designed for small volume multi-size carton packaging.
- Small footprint, economical and suitable for a variety of sizes of boxes.
- Save labor costs, one person can pack 40 boxes per minute, greatly improving production efficiency.
- The whole equipment is made of stainless steel 304.

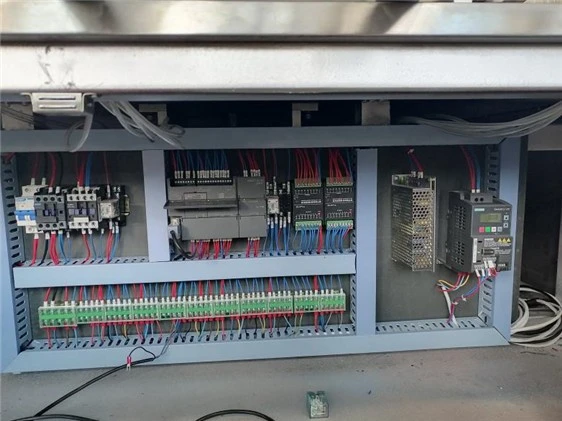

- The equipment adopts advanced PLC control with touch screen operation function, and the production speed can be adjusted freely without adjusting any other parameters.

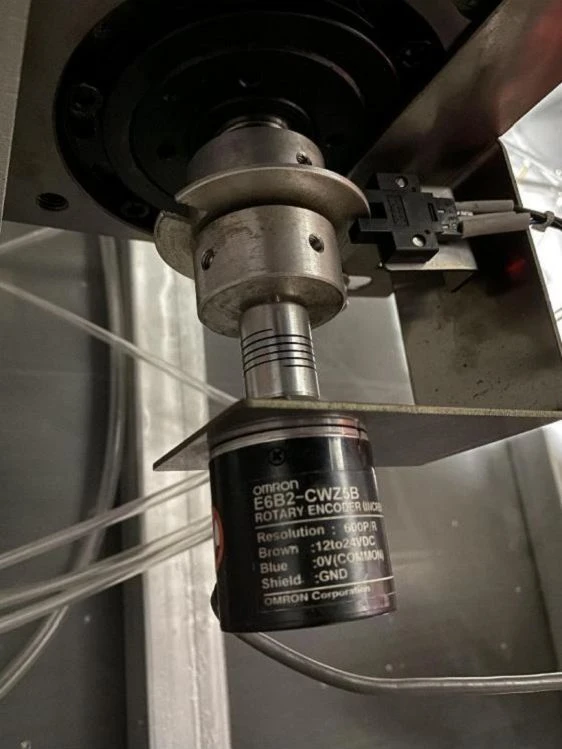

- Advanced electrical control system: the imported encoder is used for centralized electrical control, easy to use and easy to operate.
- The first paper box feeding system in China, realizing the function of adding new paper boxes without stopping.
- This device can be connected to the front liquid filling machine, aluminum-plastic packaging machine, pillow packaging machine and other packaging machines, and realize fully automatic work. The back end can be connected with labeling machine, baling machine, heat shrink machine and 3D packaging machine.
- Optional functions: printing production date, automatic adding instructions, hot melt adhesive sealing device, automatic feeding device, etc.
Technical Parameters:
|
Model |
ZH-100 |
|
Packing speed |
5-20 Cartons/min |
|
Carton size range |
L(70-200)mm×W(70-200)mm×H(40-110)mm, |
|
Carton gram requirements |
250-400g/m3 |
|
Motor power |
0.3-0.6KW |
|
Power supply |
Single phase 220V 50Hz |
|
Machine noise |
≤80dB |
|
Air pressure |
0.7-0.8 Mpa |
|
Air consumption |
200L/min |
|
Dimension |
2200×1770×2150 mm |
|
Weight |
700Kg |

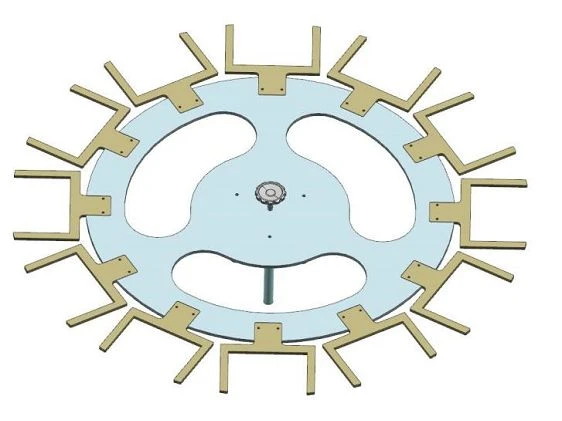

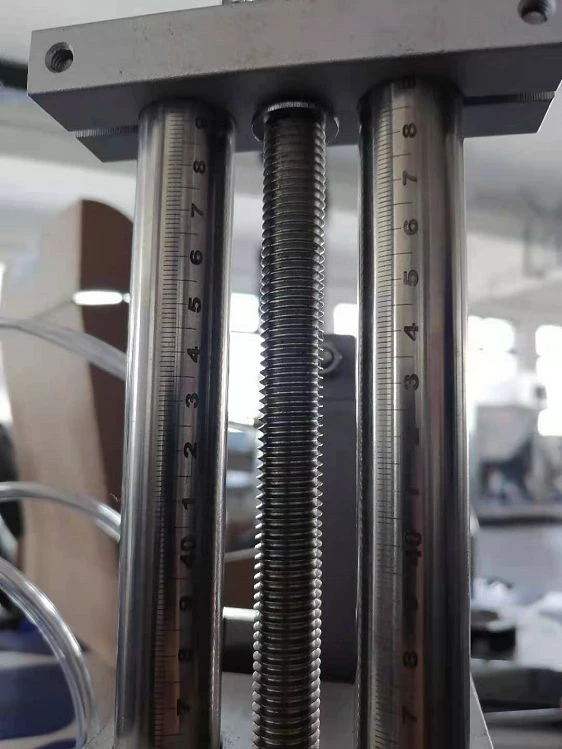

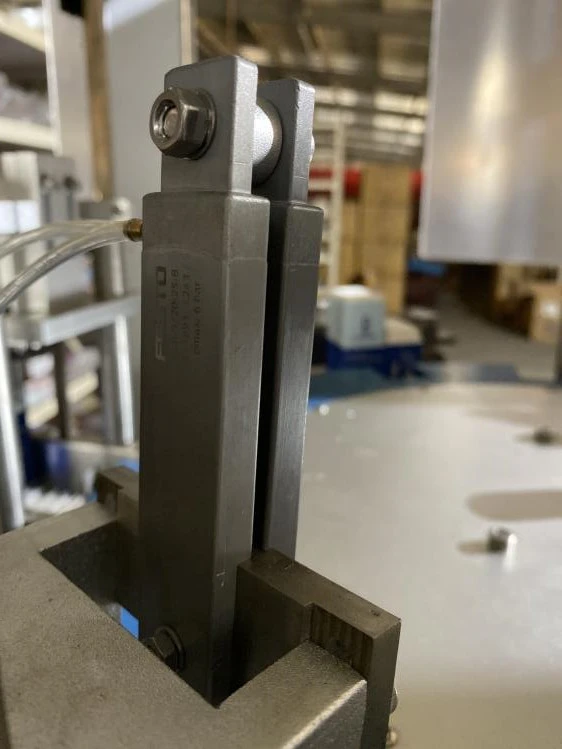

Machine Details:
Configuration List:
|
NO. |
Name |
QTY |
Brand |
|
1 |
Touch Screen |
1piece |
WEINVIEW |
|
2 |
PLC |
1piece |
MITSUBISHI |
|
3 |
Transducer |
1piece |
Delta |
|
4 |
Motor |
1piece |
WANSHSIN |
|
5 |
Relay |
2pcs |
OMRON |
|
6 |
Breaker |
1piece |
CHNT |
|
7 |
Air Switch |
1piece |
CHNT |
|
8 |
Suction box cylinder |
1piece |
Festo/SMC |
|
9 |
Suction box - Vacuum generator |
1piece |
SMC |
|
10 |
Upper and lower lock box cylinders |
3pcs |
Festo/SMC |
|
11 |
Press box cylinder |
1piece |
AIRTAC |
|
12 |
Upper and lower sealing box cylinder |
4pcs |
Festo |
|
13 |
Upper side box sealing |
1piece |
SMC |
|
14 |
Outlet cylinder |
1piece |
Festo/SMC |
|
15 |
Neaten box cylinder |
1piece |
AIRTAC |
|
16 |
Shaving exhaust cylinder (manual feeding without this cylinder) |
1piece |
AIRTAC |
|

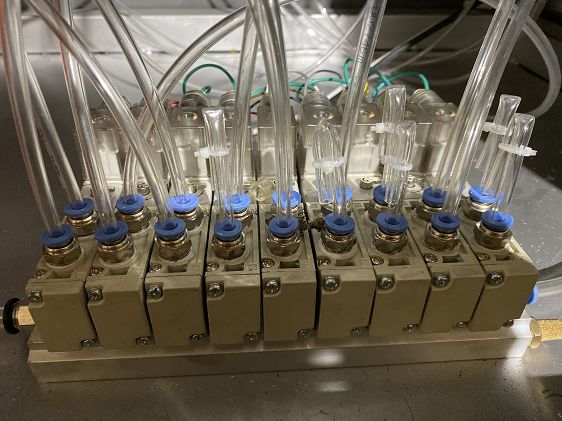

17 |
Solenoid valve |
10-12pcs(7-9) |
PNEULEAD |
|
18 |
Triple filter |
1piece |
PNEULEAD |
|
19 |
Alarm light |
1piece |
Wenzhou |
|
20 |
Alartor |
1piece |
AIRTA |
|
Note: Please be informed that the brand configuration and quantity of cylinders at each station of the equipment will be adjusted according to the actual carton and material situation. |
|||
