DPP-160 blister packing machine can be used for the packaging of solid, liquid and paste products such as tablets, capsules, milk, honey and yogurt by changing the feeder.
Product Feature
- Pulling length can be adjusted. Mold is fixed by located groove so that it's easy to change mold. The machine heats the PVC through heated board and forms by compressed air frothing.
- Speed is controlled by invert. It Adopts the interface of human-machine and PLC controller. Adopt universal feeder for feeding.
- With automatic feeder, we can design the mould and feeder according to customer's requirement.
- With automatic feeder, we can design the mould and feeder according to customer's requirement.
- Step motor is adopted on the machine for precise controlling on pulling length and saving packing material.
- The heating molds will automatically separate when the machine stops, which contributes to protect the packing material from heated mould.
Machine Drawing
Product Parameter
|
Model |
DPP-160A |
|
Punch frequency |
15-35 times/min(alu plastic) |
|
Max. Forming area & Depth |
140x110(standard depth ≦15mm), Max. Depth 20mm( As adjusted |
|
Standard Stroke range |
30-120mm(can be designed as per user's required) |
|
Air pressure |
0.4-0.6Mpa |
|
Compressed air required |
Air compressor≥0.4m3/min |
|
Total power supply |
380V 3P 50Hz 5.5Kw |
|
Main motor |
1.2Kw |
|
PVC hard Film |
0.15-0.5*160 (mm) |
|
PTP Aluminum film |
0.02-0.035*160 (mm) |
|
Dialysis Paper |
50-100g*160(mm) |
|
Mould cooling |
Tap water or Recycling water |
|
Overall Dimension |
3000*700*1900(mm)(LxWxH) |
|
Weight |
1200kg |
|
Noise index |
<75dBA |
|
|
|
|

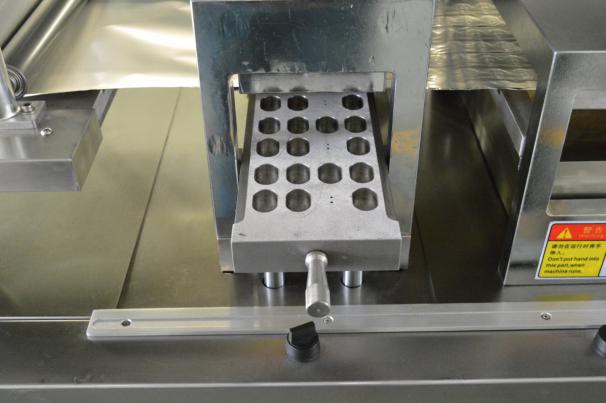

Forming |
Tractor |
|
|
|
|

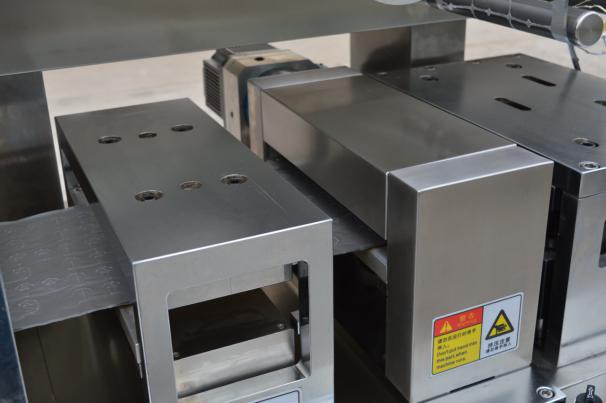

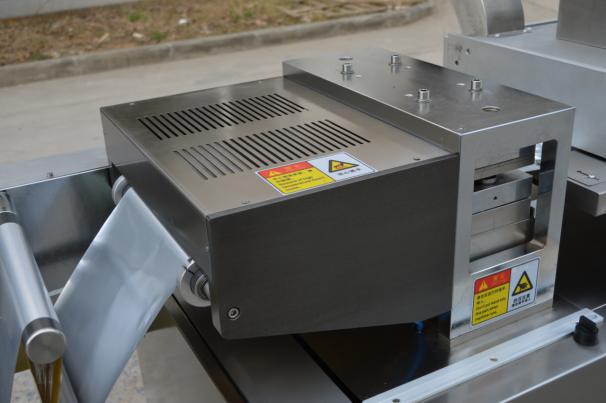

Heat-sealing |
Electric light |
|
|
|
|

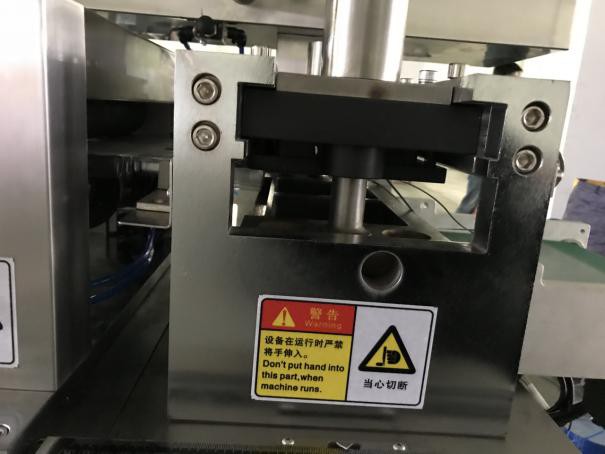

Blanking |

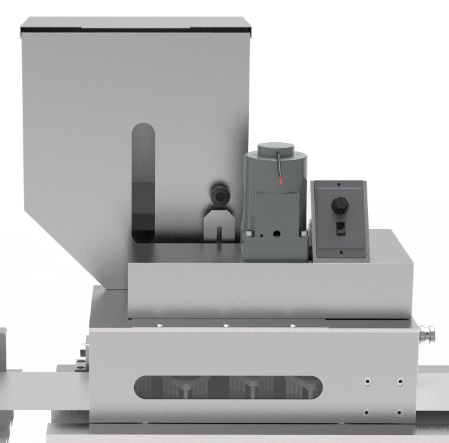

Feeder |
Electrical Components
|
Name |
Spec./Model |
Brand |
Qty |
|
Touch screen |
FE6070C |
Weinview |
1 |
|
Frequency converter |
FXINI40ER |
Delta |
1 |
|
PLC |
DVP30EC |
Delta |
1 |
|
Encoder |
ZLB2.806-G-500BM |
OMRON |
3 |
|
Receiving Plate |
T528 |
Delta |
3 |
|
Stepper motor |
HSMC-80HP075A30EAYY-C |
Hollanville |
1 |
|
Stepping driver |
HS360-075-A |
Hollanville |
1 |
|
Solid state voltage regulator |
A250V/25A |
Magel |
1 |
|
Emergency stop switch |
11TS(YO90) |
Hongbo |
1 |
|
Solid state relay |
JGV-1D4825 |
Magel |
3 |
|
Proximity switch with time delay |
J6-D7NK-T2 |
BAIDELI |
3 |
|
Proximity switch |
J2-D4NK-M |
BAIDELI |
3 |
|
Photoelectric switch |
BZJ-511 |
BAIDELI |
1 |
|
Air circuit breaker |
CZ4760/3P32A |
CHINT |
1 |
|
Air circuit breaker |
CZ4760/1P10A |
CHINT |
5 |
|
AC contactor |
CTX2-09 |
CHINT |
1 |
|
Switching Mode Power Supply |
110/220V |
Meanwell |
1 |
