Effervescent Sheet Filling Machine

Efferent sheet tube machine is suitable for large thin single row of orderly overlapping into the bobbin bottle packaging, all the equipment adopts programmable controller centralized control, optical fiber, photoelectric detection, stable performance, reliable action, automatic operation. When there is no piece, lack of bottle, lack of cover, etc., it can alarm and automatically stop. The contact part of the device and the tablet is made of 316L stainless steel material, which fully complies with GMP requirements. It is the ideal equipment for pharmaceutical factory, health product factory, food factory effervescent tablet packaging and similar packaging.

If the bottle height is the same, the number of pieces is reduced, no need to replace any mold; When changing different bottle heights, only one part needs to be replaced, which is efficient and convenient, and can be changed in less than 10 minutes. Other equipment in the same industry to replace 5 parts, replace complex locks, adjust technology is difficult. The equipment also has the function of insufficient filling and scrapping; Reverse bottle no filling, no cap, kick waste function; Our features make the customer experience better.

Manually pour the tablets into the tablet storage hopper - the tablets enter the screen part - automatically arrange the tablets into the rail - automatically enter the loading position,
Manually place the bottle into the container in the same direction - automatically send the bottle to the loading position,
Manually pour the cover into the feed bucket - automatic cover - enter the capping position,
The machine automatically completes filling, capping and exiting the bottle.

The tablet diameter is unchanged, the thickness is within ±0.3mm without changing the mold, and the thickness is beyond ±0.3mm to replace the mold as follows:

Flat vibration, debris separation

The diameter of the tube remains unchanged and the length changes. The replacement mold is as follows:

Tilting guide seat

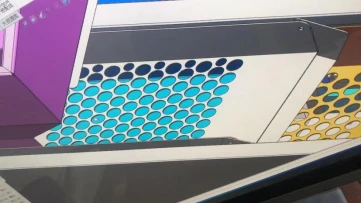

Sieve parts, diameter less than 18mm can be screened out

1. Feed the cover oscillation disc: Manually put the cover into the oscillation disc, and the oscillation will automatically send the cover to the fixed gland position in the set direction.
2. Feeding the tablet into the bottle: feeding the tablet into the bottle part: manually put the tablet into the tablet storage bucket, automatically rub the tablet and arrange the tablet to each track, automatically send the tablet to the loading position, when the bottle is detected in the loading position, the feeding cylinder will automatically send the tablet into the bottle.
3, the bottle part: manually put the bottle in the same direction into the bottle bucket, the machine will automatically arrange the bottle into the loading position.
4, capping part: When the bottle is detected and contains tablets, the capping part will automatically press the cap into the bottle mouth. No piece, little piece without capping, and automatically remove the bottle without capping.
5, electric control part: the entire operation process of the equipment is controlled by PLC, and automatically executed in order. When a package is missing, it will automatically alarm and delay the shutdown.
6, alarm function: missing piece alarm, missing bottle alarm, cylinder not in place alarm, missing cover alarm.

1, the panel is made of steel and painted, the mask is made of 304 material, the other is made of aluminum oxide, 304 stainless steel, and the part in contact with the tablet is made of 316 stainless steel.

The machine cannot remove all debris, it is necessary to manually clear some debris on the track, less than one piece can be detected, the machine will not press the cap and automatically remove, when the cap is not installed in the bottle mouth, it can also automatically reject. The machine is equipped with a vacuum interface, the vacuum cleaner needs to be prepared by the customer, the interface diameter is 38mm.
