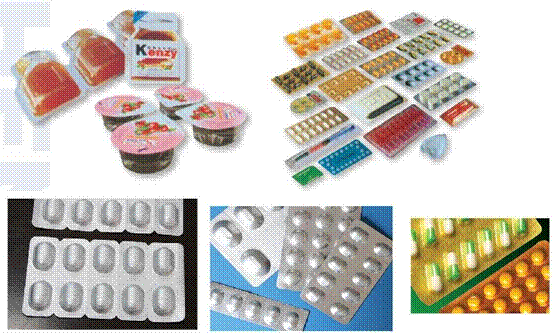

Product sample
Applying
This machine through change the feeder can be used for packing the solid, liquid, paste product like tablet capsule, milk, honey, yogurt, etc.
Product Features
- The machine body adopt guide track structure instead of housing window localization. Molds such as forming, heat seal, punch can be adjusted willingly on the guide track, suitable for different size plates, easy adjust, good adaptability, high accuracy.
- Mechanism hands for traction, stroke adjustable, easy operation, stable running.
- With parallel-axes bevel gears reducer, avoid loosen or slippage caused by chain or belt.
- Mould location by pin, easy change mould.
- Frequency converter speed change, punch frequency 6-35 adjustable
- Adjustable operation panel, suitable for different plates, easy operation.
- Can equip with PLC, human-machine interface, high automation, photo-electronic,registration, localize heat seal, automatic error compensation.
- Aluminum foil reel adopt stable device, canceled the affection of pull force change with the ALU foil reel gradually diminish, thus it made a great role in synchronization.
- The up and low molds for heat seal mate each other completely, with multi level cylinder compressing heat sealing, the net pattern show clearly, firm, and reach 100% seal.
- Low heating temperature of up and low heating with aluminum alloy, finally make out the plump forming blister, specially suitable for packing of hot sensitivity medicines.
Product Parameters
|
Cutting Frequency (Times/min) |
6-50 |
|
Production Capacity (pcs/h) |
20000-110000 |
|
Max. Forming Area And Depth (mm) |
140×130×26 (Standard Depth 14mm) |
|
Travel Range (mm) |
40-140 (Can be lengthened to 160mm according to user's requirements) |
|
Standard Plate (mm) |
80×57 (Can be manufactured as user's requirements) |
|
Air Pressure (Mpa) |
0.4-0.6 |
|
Air Supply |
≥0.2m3/min |
|
Total Power |
380V/220V 50Hz 3.6KW |
|
Main Motor Power (KW) |
0.75 |
|
PVC/PE/PET Hard Pieces (mm) |
0.15-0.5×150 |
|
PTP Aluminum Foil (mm) |
0.02-0.035×150 |
|
Dialysis Paper (mm) |
50-100g×150 |
|
Mould Cooling |
Tap Water Or Circulating Water |
|
Overall Dimensions (mm) |
2300×560×1410(L×W×H) |
Our Services
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own factory located in Ruian, Wenzhou city, Zhejiang province, China
3. Strong professional technical team ensure to produce the top quality products.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on outdoor equipment.
