Product Description
This machine is widely used in liquid filling of lotion, nursing liquid, oral liquid, disinfectant, eye wash liquid, nutrient solution, wine, pesticide, medicine, perfume, edible oil, lubricating oil, chemical industry and special industries.
Product Feature
1, PLC control, stepless frequency conversion adjustment.
2, roll, plastic molding, filling, batch number, end cutting, punching, slitting and other 7 stations are automatically completed by the program.
3, human-machine interface device, simple and clear operation.
4, the filling head does not drip, does not foam, does not overflow.
5, the relevant parts in contact with the liquid medicine are all made of high-quality stainless steel materials, in line with GMP standards.
6, the main pneumatic components, electrical imported parts.
7, electronic peristaltic pump automatic filling system and mechanical filling two, accurate measurement error is small.
Product Parameter
|
Maximum forming depth |
12mm |
|
Packaging speed |
100bottles/min |
|
Filling head |
5 filling heads/time |
|
Packing material |
PVC/PE(0.2-0.4)×120mm |
|
Fill volume |
1-100ml/piece |
|
Total power of supply |
6.0kw |
|
Voltage |
220V/50Hz (380V, 50Hz) |
|
Machine weight |
850kg |
|
Machine size |
2300*850*1450mm |
|
Machine size after packing |
2450*1060*1850mm |
Machine Configuration
|
Name |
Brand |
Spec/Model |
|
PLC |
Schneider |
TM241C40T |
|
Touch Screen |
Schneider |
HMIGXU3500 |
|
PLC Module |
Schneider |
TM3T14 |
|
Communication Cable |
Fanuc |
XBTZ9008-3M |
|
Frequency Converter |
Schneider |
ATV12HU15M2 |
|
AC Contactor |
Schneider |
LC1E1210M5N |
|
Relay |
Schneider |
RXM2LB2BD/RXZE1MA2C |
|
Air-breaker |
Schneider |
OSMC32N4C40 |
|
Air-breaker |
Schneider |
OSMC32N1C10 |
|
Switch Power Supply |
Schneider |
ABL2REM24020H |
|
Emergency Stop Button |
Schneider |
XB2BT42C |
|
Solid State Relay |
MEGA |
MGR-1D4825 |
|
Cooling Fin |
MEGA |
I-50 |
|
Magnified Version |
Kexiang |
S40194N-D24 |
|
Encoder |
OMRON |
RI41-0/360ER |
|
Photoelectric Switch |
OMRON |
Tl-Q5MC1-Z |
|
Proximity Switch |
Xinou |
LJ12A4-4-Z/BX plastic |
|
Electronic Peristaltic Pump |
Traza |
/ |

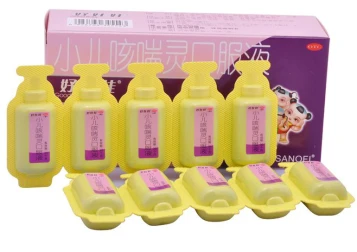

Sample Photos
