Product Description
Full servo non-glue paper straw making machine is our latest research and development of new products. The machine integrates automatic paper connection, forming, cutting and collecting, and adopts a CNC multi cutter system to directly produce finished paper straws. The paper straw produced by the machine can withstand high temperature of 100 degrees (normal one is 70 degrees), but also can be degraded without pollution to the environment.
Product Features
(1)Save space and time.
(2)The machine has sterilization function.
(3)Have no problems caused by weather and glue.
(4)The paper straws can withstand in high temperature and be degradable.
(5)The product loss rate is greatly reduced.
(6)The hardness increases with the same thickness raw materials.
(7)The whole machine adopts servo motor.
(8)It is suitable for double-use models with glue and no glue.
Technical Parameter
| Raw Material | Pure Wood Pulp Paper | ||
| Paper Layers | 3 layers | ||
| Paper Thickness(from inside to outside) | 120g/m²,120g/m²,60g/m² | ||
| Tube Thickness | 0.3-2mm | ||
| Running Speed | 40-100meters/min | ||
| Tube Size | 4.5-12mm | ||
| Cutting System | servo motors,8 set knives | ||
| Cutting Length | 80-1350mm | ||
| Power Source | 380V 50Hz | ||
| Operation Person | 1-2person | ||
| Paper Roll Bracket | 1600*2000*1100mm | ||
| Main Part | 2300*860*1270mm | ||
| Collection Part | 1900*970*1770mm | ||
| Weight | 1400kg | ||

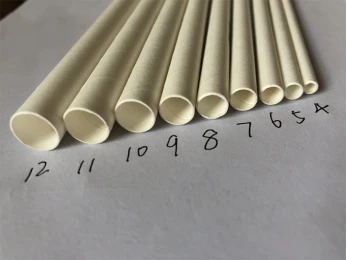

Product Photos
