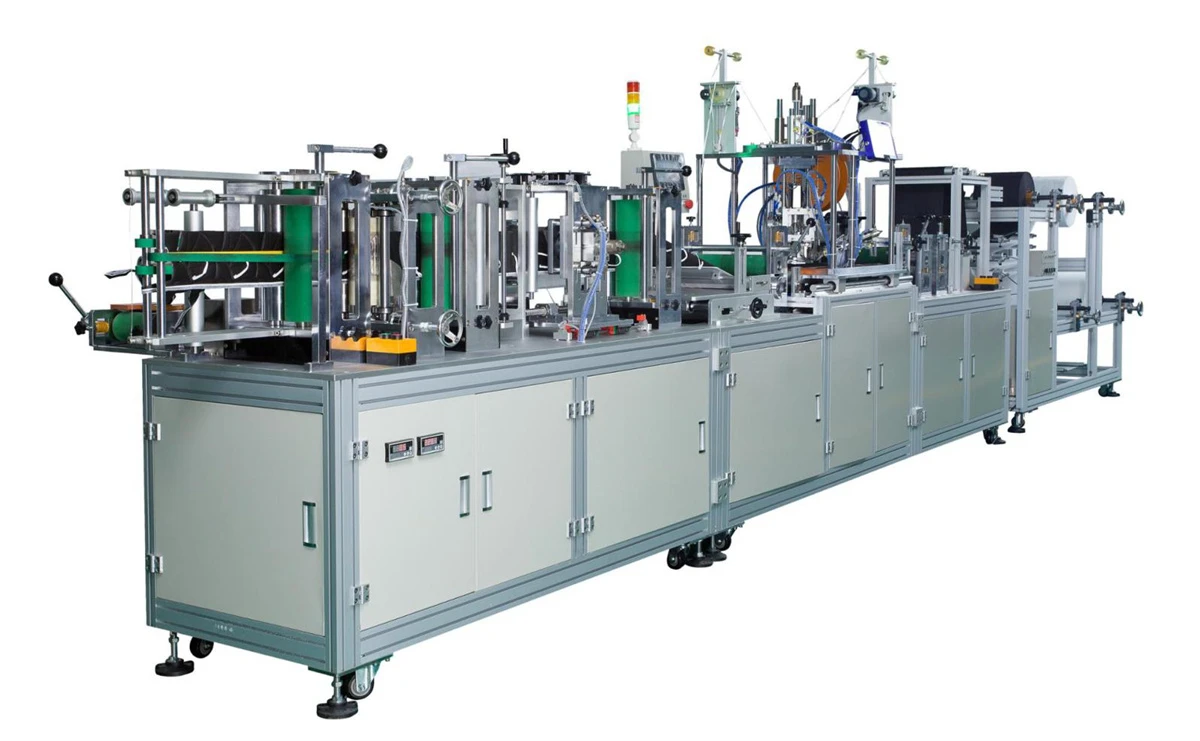

Full automatic N95 fold mask machine

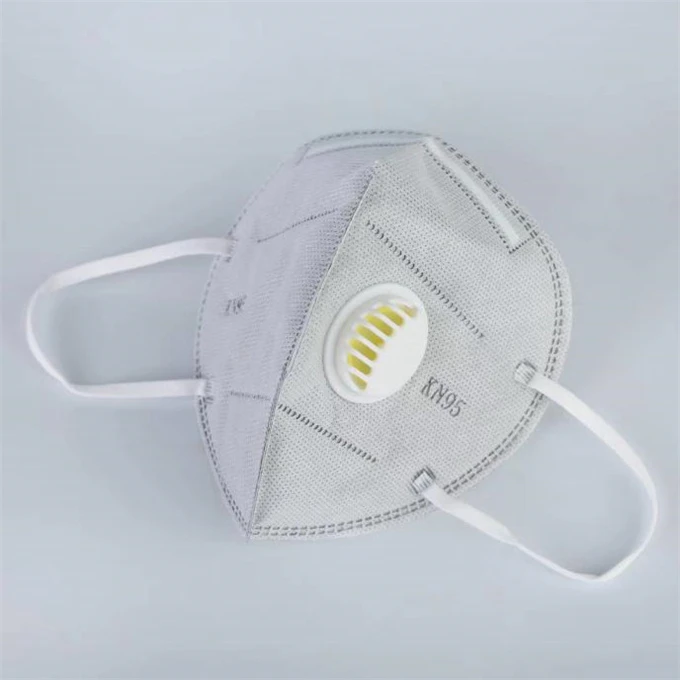

This machine is used for making masks and for automatically perforating masks and fitting them with breathing valves. From the feeding of fabric to the completion of automation of finished products, including (upper bridge strip, printing), welding elastic ear bands, folding, forming, welding and cutting of finished products, waste removal, and finished product output, the automatic production on a machine is fully realized.(The whole machine only needs one person to operate).
Specification
|
Model |
GD-3001 |
|
Capacity |
35-45pcs/min (If add putting valve function,20-25pcs/min) |
|
Voltage |
220V/according to customer needs |
|
Machine power |
10KW |
|
Air pressure |
6kg/cm2 |
|
Machine size |
7600*2500*1980mm |
|
Machine weight |
1400KG |
Feature
1. PLC control.
2. Photoelectric detection and positioning.
3. Printing function, punching function, putting valve function.
4. Tension control system.
5. Good appearance and rustproof aluminum alloy structure.
Instructions
|
NO. |
Name |
Bland |
|
1 |
Stepper Motor |
Lei Sai |
|
2 |
Speed Motor |
FEI TENG |
|
3 |
Servo Motor |
XINJE |
|
4 |
Reducer |
Guangdong Chuan Ming |
|
5 |
Splitter |
HENG RUI |
|
6 |
PLC |
XINJE |
|
7 |
Touch Screen |
XINJE |
|
8 |
Cylinder |
Taiwan Air TAC |
|
9 |
Electromagnetic Valve |
Taiwan Air TAC |
|
10 |
Confluence Board |
Taiwan Air TAC |
|
11 |
Floating Joint |
Taiwan Air TAC |
|
12 |
Pneumatic Original |
Taiwan Air TAC |
|
13 |
Sensor |
Taiwan Air TAC |
|
14 |
Oil Pressure Buffer |
Taiwan Air TAC |
|
15 |
Connector |
Isaiah |
|
16 |
Fish Eye Connector |
Taiwan Air TAC |
|
17 |
Photoelectric Switch |
Japan Omron |
|
18 |
Sensory Switch |
DCF, Omron |
|
19 |
Screw |
Taiwan HIWIN |
|
20 |
Guide |
Taiwan HIWIN |
|
21 |
Slider |
Taiwan HIWIN |
|
22 |
Drag Chain |
Jinda |
|
23 |
Trachea |
National Sandard |
|
24 |
Linear Bearings |
KOLMB |
|
25 |
Coupling |
GUANGZHIDA |
|
26 |
Bearing |
HKB, NSK |
|
27 |
Ultrasonic |
Auto FRS |
|
28 |
Optical Fiber |
Japan Omron |
|
29 |
Mold Spring |
DORN |
|
30 |
Proximity Switch |
CHNT |
|
31 |
Pressure Sensor |
JINNUO |
|
32 |
Relay |
Japan Omron |
|
33 |
Switching Power Supply |
Taiwan Ming Wei |
|
34 |
Switch Button |
Japan IZUMI |
|
35 |
Wire |
Jin Mingtai (National Standard) |
|
36 |
Timing Belt |
Three-dimensional |
|
37 |
Belt |
Three-dimensional |
|
38 |
Foot Cup |
GUOJI |
|
39 |
Casters |
GUOJI |
|
40 |
Aluminum Profile |
Made of stainless steel |
|
41 |
Door Panel |
Made of stainless steel sheet metal paint |
Raw materials list for mask productions
- PP non-woven fabric 50G 260mm
- PP non-woven fabric 25G 260mm
- Melt-blown fabric 50G 260mm
- Hot air cotton 30G 260mm
- Nose strip 5mm
- Sponge strip 5mm
- Flat ear band 5mm
