Sleeve Labeling Machine

Sleeve Labeling Machine

The machine is widely used in industries, products, mainly suitable for various containers, shrink film packaging of various shapes and materials (such as: Food and beverage, cleaning supplies, cosmetics and other plastic bottles, glass bottles, PVC, PET, PS, tin and other containers), can be completely connected with the production line operation and a single operation, empty bottles or can be packaged after use, automatic and rapid packaging, saving a lot of labor costs, while greatly improving the product packaging effect.
Send Inquiry
Description
Technical Parameters
Product Description

The machine is widely used in industries, products, mainly suitable for various containers, shrink film packaging of various shapes and materials (such as: Food and beverage, cleaning supplies, cosmetics and other plastic bottles, glass bottles, PVC, PET, PS, tin and other containers), can be completely connected with the production line operation and a single operation, empty bottles or can be packaged after use, automatic and rapid packaging, saving a lot of labor costs, while greatly improving the product packaging effect.



Product Features

1. The body is covered with stainless steel: waterproof and rust free
2. Adjustable knife scheme: Original, double-edged knife, long use time
3. Single fixed position center axis, label transfer is more stable
4. Step reading, label transfer is more stable
5. Label brush: the sleeve is more accurate and corrected
6. Label control electric eye frame: the original tail is connected with the electric eye to improve the film cutting accuracy
7. Key control box, more humane
8. Material supply frame: you can choose the frame position freely

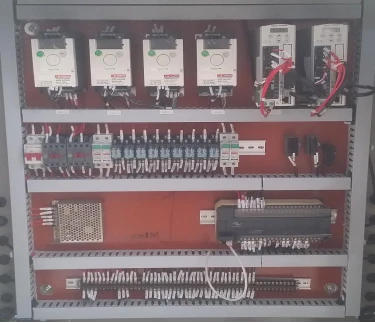

9. Electrical configuration
10. Adopt PLC programmable controller, imported servo motor, servo driver, frequency and sensor, but also fixed position frame to ensure that the standard is accurate, fast and stable.
11. Suitable product type: various bottles, such as round bottles, square bottles, flat bottles, curved bottles, cups, etc.



Main Technical Parameters

Machine

Machine model

LCH-T10BD



Capacity

100BPM

(The label length is 50mm)



Size L*W*H

2000*850*2100mm



weight

800Kgs



Powder supply

220/380VAC,50/60Hz



Eligibility percent

≥99.8%



Host machine powder

2.5KW

Shrink labels

Materials

PVC, PET, OPS, OPP



Thickness

0.03~0.13mm



Labels Length

40~200mm



Flat width

Max200mm



Inner Dia. Of fiber container

3"~10" adjustable

Bottle to be pack

Height

Max320mm



Diameter

Ø28- Ø125mm



Material

Glass,Metal ,Plastic



Shapes

Round, square, flat, curved cup-shaped bottles



product-375-323    product-449-301
