Products Description

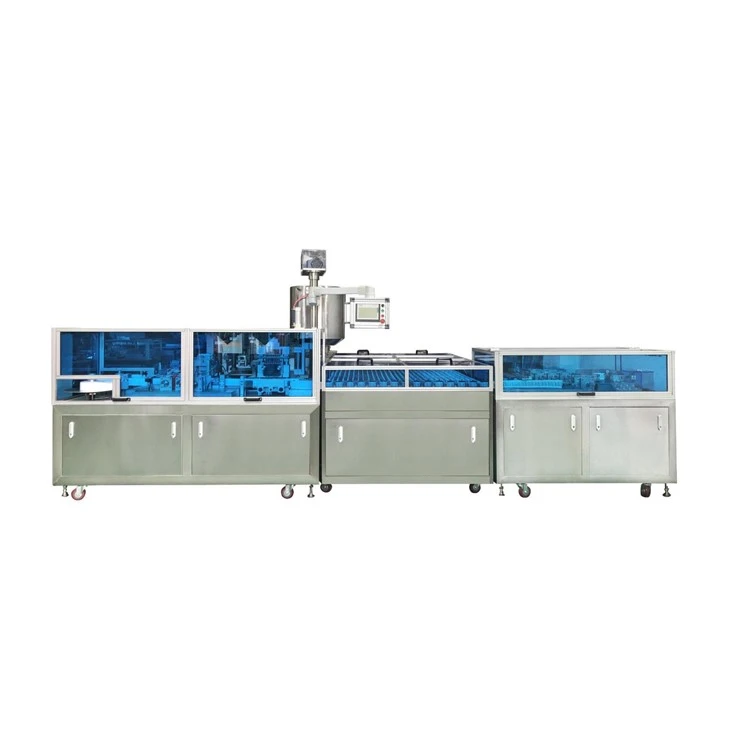

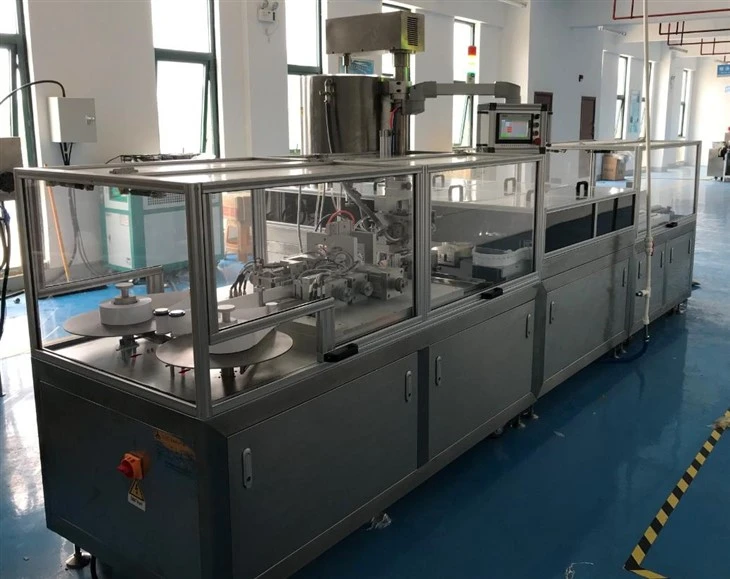

The SJ-7LSautomatic suppository filling production line has a stable and efficient manufacturing process, filling, freezing, sealing and other production processes to complete the whole process, and the production capacity is 8,000 -10000 grain/hour.The SJ-7LSautomatic suppository filling production line has a stable and efficient manufacturing process, filling, freezing, sealing and other production processes to complete the whole process, and the production capacity is 8,000 - 10,000 grain/hour.
Products Features
1 High Accuracy of Filling

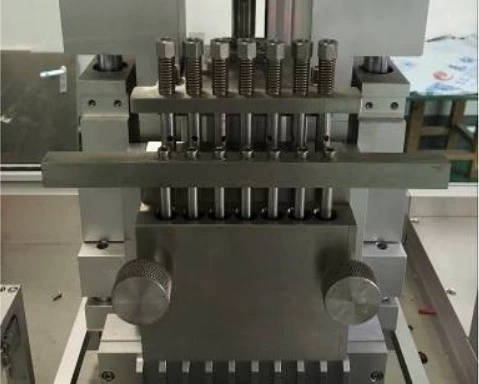

Servo high precision filling system, PLC touch screen control filling volume, filling action, filling volume for servo control, filling precision, convenient, instead of the previous manual adjustment of filling volume. Filling piston by servo motor with stroke rule, easy to observe, stable action, no jitter and splash phenomenon, load online adjustable, high precision and easy to adjust!
The plunger pump body is treated with special technology to make the sealing performance between the filling piston and the pump body better and the infusion dosage more accurate.
2 Combination structure of triangle knife and dot line knife
Make the both of triangle and the dotted line knives completely coincide, make the bolted shell achieve the easy tear effect.
3 shearing system(Patent technology)
Instead of the tedious manual adjustment, the shear number can be completed by adjusting parameters of the touch screen, convenient operation, accurate positioning, stable operation and efficiency.
4 Circulating cooling system
The cooling system of this machine adopts the latest circulating water cooling technology, which can solve the phenomenon of slag falling off and easy fracture when the medicine is torn apart. The temperature is adjustable.
★ exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.
★ the cooling system of the wheel is to turn to the suppository shell of the neck, not injury bubble, not pin belt. Wheels can be manually synchronized adjustment function.
★ exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.
★ the cooling system of the wheel is to turn to the suppository shell of the neck, not injury bubble, not pin belt. Wheels can be manually synchronized adjustment function.Cooling track can adjust the distance between tracks according to the size of several different specifications.Cooling track can adjust the distance between tracks according to the size of several different specifications.
5 Sealing shear preheating
The cooled solid suppository enters the sealing area: heating sealing mold (sealing) marking mold (batch number) hob (trimming the top) counting shear.
6 Mixing drum speed regulating system
Due to the different viscosity of the drug matrix, it may be impossible to immobilize the stirring effect to make the drugs evenly mixed before filling, thus affecting the drug content of the finished suppository.
7 PLC Detection function
PLC online monitoring function can be used to alarm the operation failure and synchronously display the cause of failure for the convenience of timely troubleshooting operators.
8The filling part is equipped with an electrostatic removing system
If the device is not included before the molding empty shell arrives at the filling site, the sealing quality behind the device will be affected because the upper part close to the plug shell will climb a short distance along the inner wall of the empty shell under the action of electrostatic force during the micro drug filling.
9The filling part has no hanging wall
The filling pump body of the equipment has high precision, good sealing effect, smooth inner wall and good stability
And achieve long-term operation without hanging wall phenomenon.
10 It is easy to operate
Control station height reasonable design, simple operation of the machine.
Technical Parameter
|
Commodity |
Continuously Automatic suppository production line |
Model |
SJ-7LS |
|
Output |
8,000 -10000pcs/h |
single dosage |
0.5-5ml |
|
Dosage allowed |
＜±2% |

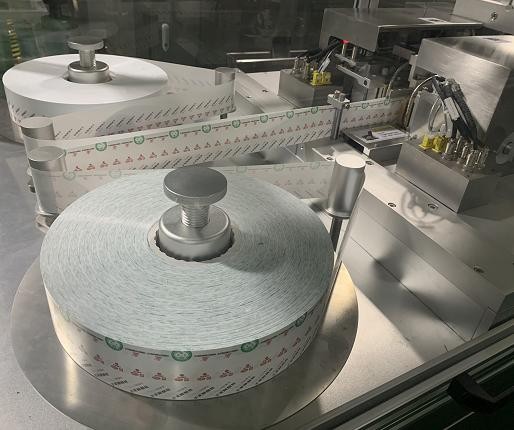

Packaging Film |
PVC\PE (thickness0.15-0.18mm) |
|
Stirring tank capacity |
70L |
Air pressure |
≥0.6Mpa |
|
Air consumption/min |
1.5m3/min |
Water consumption/h |
50kg (recycling) |
|
Working voltage |
3 phase 380V |
total power |
7.5KW |
|
Adopt forming shapes |
Bullet, torpedo and other shapes |
Machine Weight |
2000KG |
|
Adapt Material |
Synthetic fatty acid glycerol, glycerin gelatin, polyethylene glycol etc |
Each distance of suppository |
17.4mm |
|
Overall dimensions |
L5,302mm×W2,120mm×H1,809mm |
||
