Product Description
This product is a brand-new automatic carton processing equipment launched by us, which can automatically feed paper, spray glue, form, transport and stack at one time. It is mainly used for the production and molding of special-shaped cartons and heaven and earth cover packaging cartons. It is suitable for the packaging of fruits, vegetables and other food.
Product Feature
(1) Imported intelligent glue dispensing system with automatic glue compensation;
(2) Vacuum suction type automatic paperboard feeding, and the continuous operation of feeding, wrapping, folding and molding, Conveying, stacking is completed in one time;
(3) Using PLC programmable controller, photoelectric tracking system, gas source detection and operation system, touch screen man-machine interface, and implementing the whole automation process of the formation of the foldable boxes;
(4) Fiber positioning and glue application when folded to reduce glue application errors.Automatically push the cardboard to apply glue front and back, reduce the error of the photoelectric eye to irradiate the cardboard, therefore gluing is more accurate;
(5) Infrared safety protection system to ensure the safety of operation personnel;
(6) Automatic fault diagnosis function;
(7) Automatic quick mold adjustment function;
(8) Rack cage design, integral processing, grouped combination;
(9) Small footprint and good stability.
(10) Automatic stacking function

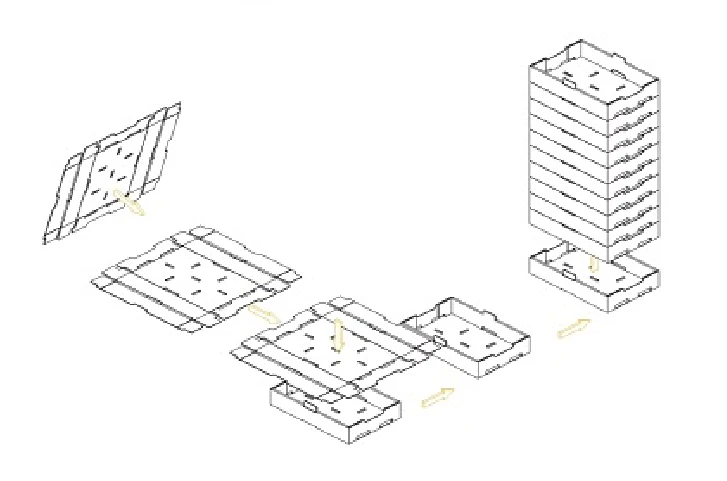

Paper Box Forming Diagram

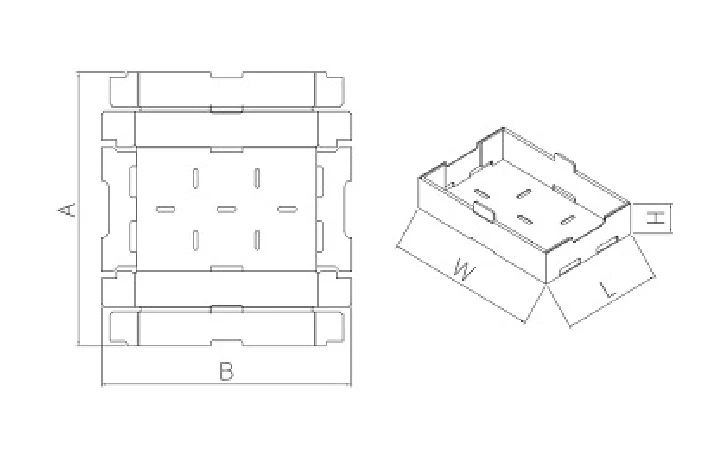

Paper Box Specification
| Item | Min size | Max size |
| A: paper width | 450mm | 1200mm |
| B: paper lenght | 450mm | 1000mm |
| L: box lenght | 240mm | 600mm |
| W: box width | 240mm | 450mm |
| H: box height | 70mm | 200mm |
Product Technical Parameters
| No. | Automatic Cardboard Carton Folding Forming Machine | |
| 1 | Paper Thickness | 3mm-7mm |
| 2 | Power | 380V/50Hz, 10kw |
| 3 | Noise | ≤80dB |
| 4 | Speed | Special-shaped box25-30pcs/min, lid and base box 40-55pcs/min |
| 5 | Paper Stacking Height | 400mm |
| 6 | Glue Capacity | 10L |
| 7 | Air Source | 120-160L/min |
| 8 | Machine Weight | 2000kg |
| 9 | Machine Size | 3080*1805*2065mm (L*W*H) |
